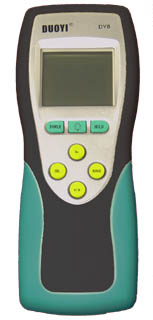

Digital Multimeters
| MODEL |
DY8 |
| DC V |
60m/6/60/600V ±(0.8%+2) |
| AC V |
60m/6/60/600V ±(1%+5) |
| Resistance |
600/6K/60K/600K/6M/60MΩ ±(1%+2) |
| Capacitance |
6n/60n/600n/6µ/60µ/600µ/6m/60mF ±(3%+5) |
| Frequency |
40 ~ 2kHz ±(2.0%+5) |
| Auto range |
yes |
| Manual / Auto range swith |
yes |
| Diode Test |
yes |
| Continuity Buzzer |
yes |
| Data Hold |
yes |
| Voltage Test Input Impedance |
10MΩ |
| Low Battery Warning |
yes |
| Auto Power Off |
yes |
| LCD Background Light |
yes |
| Power Source |
AA 1.5V * 2 |
| LCD MAX. Display |
6999 |
| Dimension |
275 * 70 * 30 mm |
| Weight |
approx. 220g |
| Standard accessories |
 |
