Features
- Patented mold for good market recognition, patent code: ZL 01 3 47899.0
- Palm size DMM with heavy duty design
- Solid rubber holster as supportive folder and legs
Specifications

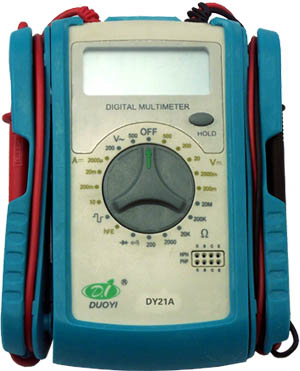

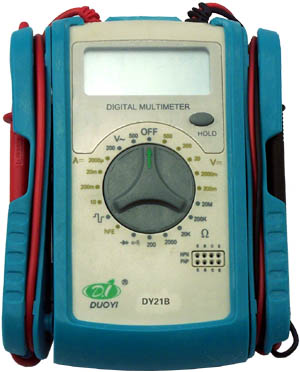

| MODEL | DY21A | DY21B |
|---|---|---|
| DC V | 200m/2/20/500V ±(0.8%+3) |
400m/4/40/500V ±(0.8%+3) |
| AC V | 2/20/500V ±(1.2%+3) |
4/40/500V ±(1.2%+3) |
| DC A | 200µ/2000µ/20m/200m ±(1.2%+2) |
400µ/4000µ/40m/400m ±(1.2%+2) |
| AC A | 200µ/2000µ/20m/200m ±(1.5%+3) |
400µ/4000µ/40m/400m ±(1.5%+3) |
| Resistance | 200/2k/20k/200k/2M/20MΩ ±(1.2%+2) |
400/4k/40k/400k/4M/20MΩ ±(1.2%+2) |
| Capacitance | - | 4n/40n/400n/4µ/40µ/100µF ±(4%+3) |
| Frequency | - | 10Hz ~ 1MHz ±(0.5%+3) |
| Duty Test | - | 0.1% ~ 99.9% |
| Diode test | yes | yes |
| Transistor test | yes | yes |
| Continuity Buzzer | <30Ω | <70Ω |
| Data Hold | yes | |
| Voltage Test Input Impedance | 10MΩ | |
| Low Battery Warning | yes | |
| Function symbol display | yes | |
| LCD MAX. Count | 1999 | |
| LCD Screen Size | 17*41mm | |
General Characteristics
| Power | 9V(6F22) | |
| Product Size | 135*100*30mm | |
| Product Net Weight | 250g | |
| Standard individual packing | blister card | |
| Standard Quantity per Carton | 40 pcs. | |
| Measurement of Standard Carton | 405*312*230mm (0.029 CBM) | |
| Gross weight of Standard Carton | 12kgs | |
