Analogue Insulation Resistance Tester DY3165/DY3166

  • CE EMC/LVD

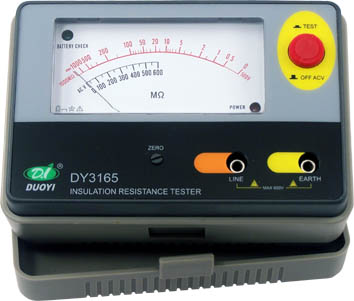

Electrical Insulation Resistance Tester DY3165 Electrical Insulation Resistance Tester DY3166

Features

  • Measure insulation resistance to 2000MΩ
  • AC voltage measurement to 600V
  • Low battery warning
  • Complete with test leads,heavy duty carry case and six 1.5V AA batteries

Specifications

Analogue Insulation Resistance Testers
MODEL DY3165 DY3166
Testing Voltage 500V 1000V
Insulation Resistance 1-1000MΩ±5% 2-2000MΩ±5%
AC V 600V ±5% 600V ±5%
Low Battery Warning yes yes

General Characteristics

Power AA1.5Vx6(UM3)
Product Size 150*100*70 mm
Product Net Weight 680g
Standard Accessories Insulation test wires CF-37A Leather case
Standard individual packing gift box
Standard Quantity per Carton 20 pcs.
Measurement of Standard Carton 450*330*413mm (0.061 CBM)
Gross weight of Standard Carton 20kgs
