Features
- 4 point measurement of ground resistance
- Direct read out value of soil resistivity(ρ), no manual calculation required
- LCD backlight
- Low battery warning

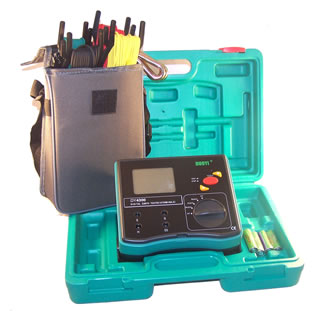

- Complete with test leads, auxiliary earth bars, heavy duty carry case and eight AA1.5V batteries
Specifications
| Item | Range | Accuracy | Resolution |
|---|---|---|---|
| Earth/Ground Resistance | 0Ω ~ 6.99Ω | ±(3%+6digits) | 0.01Ω |
| 7.9Ω ~ 49.9Ω | ±(2%+3digits) | 0.1Ω | |
| 50Ω ~ 299.5Ω | ±(2%+3digits) | 0.5Ω | |
| 300Ω ~ 1500Ω | ±(2%+3digits) | 1Ω | |
| Maximal earth resistance at H-end: Rcmax=(0-100Re) and 50KΩ less value | |||
| Maximal ground resistance at S-end: Rpmax=(0-100Re) and 50KΩ less value | |||
| Additional measurement error of Rxmac and Rpmax: ±(3%+10digits) | |||
| Soil Resistivity (ρ=2*π*a*Rg ) | 0.00Ωm ~ 99.99Ωm | ±(3%+6digits) | 0.1Ω |
| 100Ωm ~ 999.9Ωm | ±(2%+3digits) | 0.1Ω | |
| 1000Ωm ~ 9999Ωm | ±(2%+3digits) | 1Ω | |
| 10KΩm ~ 99.9KΩm | ±(2%+3digits) | 10Ω | |
| 100KΩm ~ 300KΩm | ±(2%+3digits) | 100Ω | |
| Working LED Indicator | yes | ||
| Function Symbol Display | yes | ||
| Low Battery Warning | yes | ||
| LCD Backight | auto | ||
General Characteristics
| Power Source | AA1.5Vx8(UM3) |
| Product Size | 190*155*75 mm |
| Product net weight | approx. 900g | Standard Accessories |    |
| Standard individual packing | Carry case |
| Standard Quantity per Carton | 5 pcs. |
| Measurement of Standard Carton | 645*360*276mm (0.064 CBM) |
| Gross weight of Standard Carton | 16kgs |
