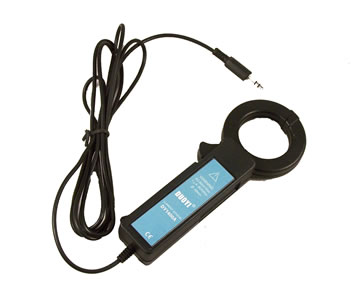

Clamp Current sensor DY1400 series
| MODEL |
MEASURE RANGE |
RESOLUTION |
LINEARITY |
TURNS RATIO |
OUTPUT SIGNAL |
| DY1400 |
10µA ~ 300A |
10µA |
1% |
1:2400 |
Current signal, µA/mA or mA/A optional |
| DY1400A |
1µA ~ 80A |
1µA |
1% |
1:800 |
Current signal, µA/mA or mA/A optional |
| DY1400B |
5mA ~ 600A |
5mA |
2% |
1:3000 |
Current signal, µA/mA or mA/A optional |
| DY1400C |
10µA ~ 300A |
10µA |
1% |
1:2400 |
Voltage signal, mV/mA or mV/A optional |
| DY1400D |
1µA ~ 80A |
1µA |
1% |
1:800 |
Voltage signal, mV/mA or mV/A optional |
| DY1400E |
5mA ~ 600A |
5mA |
2% |
1:3000 |
Voltage signal, mV/mA or mV/A optional |
| Customized version |
customizable |
