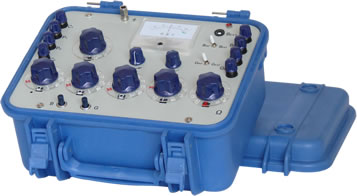

Portable DC Kelvin Bridge DY-B57P
- Wide resistance range base on Kelvin bridge covers from 0.01µΩ - 1.11110kΩ with resolution 0.01µΩ
- Built-in null-indicator and internal power supply, testing anywhere
- Solid and heavy duty box
DC DOUBLE BRIDGE DY-B57P
| Multiplying Power |
Effective Span |
RESOLUTION |
ACCURACY |
| x10-3 |
0 ~ 1.11110mΩ |
0.01µΩ |
2 |
| x10-2 |
0 ~ 11.1110mΩ |
0.1µΩ |
0.2 |
| x10-1 |
0 ~ 111.110mΩ |
1µΩ |
0.05 |
| x1 |
0 ~ 1.1111Ω |
10µΩ |
0.05 |
| x10 |
0 ~ 11.1110Ω |
100µΩ |
0.05 |
| x102 |
0 ~ 111.110Ω |
1mΩ |
0.05 |
| x103 |
0 ~ 1.11110kΩ |
10mΩ |
0.05 |
- total range: 0.01µΩ - 1.11110kΩ (wide range)
- power supply: DC1.5V (AA1.5V * 6)
- null indicator power DC9V (6F22 * 2) and external power supply
- dimension 320*280*170 mm
- weight: 6kg
