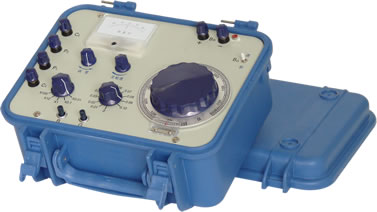

Protable DC Double Bridge DY-B42
- Base on Kelvin bridge circuit ranged from 5µΩ - 11.00Ω with resolution 5µΩ
- Built-in null-indicator and internal power supply, workable anywhere
- Solid and Heavy duty box
DC DOUBLE BRIDGE DY-B42
| Multiplying Power |
Effective Span |
RESOLUTION |
ACCURACY |
| x10-4 |
0.100 ~ 1.100mΩ |
5µΩ |
5 |
| x10-3 |
1.00 ~ 11.00mΩ |
50µΩ |
5 |
| x10-2 |
10.0 ~ 110.0mΩ |
500µΩ |
2 |
| x10-1 |
0.100 ~ 1.100Ω |
5mΩ |
2 |
| x10 |
1.00 ~ 11.00Ω |
50mµΩ |
2 |
- total range: 5µΩ - 11.00Ω
- power supply: DC1.5V (AA1.5V * 6)
- null indicator power DC9V (6F22 * 2)
- dimension 230*200*140 mm
- weight: 2.5kg
